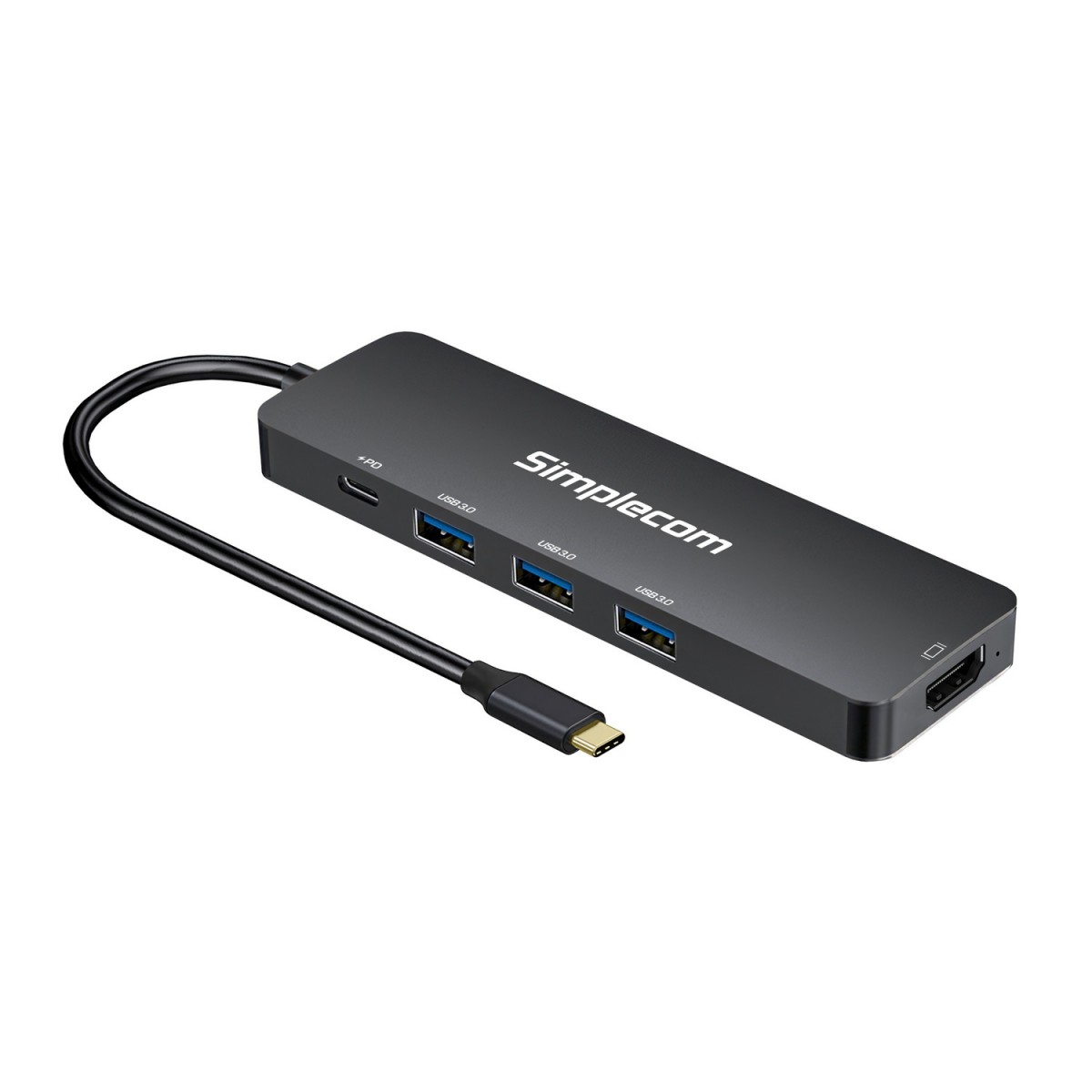

Simplecom CH545 USB-C 5-in-1 Multiport Adapter Docking Station

Description

Simplecom CH545 USB-C 5-in-1 Multiport Adapter Docking Station

This USB-C multiport docking station is designed to extend the connectivity for modern laptops with multifunctional USB-C interface. It turns a single USB-C port into 5 ports, including three SuperSpeed USB 3.0 ports, HDMI display output, and one USB-C PD charging port. The HDMI port supports transmitting video with resolution up to 4K@30Hz, and the 3-Port USB 3.0 hub provides up to 5Gbps data transfer rate. The USB-C PD port can charge your connected laptop while other ports are working, supporting up to 100W charging via Power Delivery.

Ultra-Compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. It’s an ideal connectivity solution that helps you to increase productivity and convenience.

Features

Convenience of expanding your laptop with this 5-Port USB-C docking
Single USB-C to three USB 3.0 ports, HDMI, and USB-C PD
HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
3x SuperSpeed USB 3.0 ports, support up to 5Gbps data transfer rate
USB-C PD port for charging the laptop with up to 100W of power
Durable & stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Built-in flexible USB-C Cable
Plug & play, no driver software required
Specifications

USB Hub: 3x USB 3.0 ports (SuperSpeed 5Gbps)
HDMI Output: Support up to 3840×2160 at 30 Hz (4K@30Hz)
PD Charging: USB-C Female (for charging only), up to 100W
Operation Temperature: 0 – 50°C
Housing Material: Aluminium
Dimensions: 125 x 37 x 11 (mm)
Cable Length: 13cm
Weight: 62g
System Requirements

Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 7 or above, macOS 10.7 or above, ChromeOS, Android
