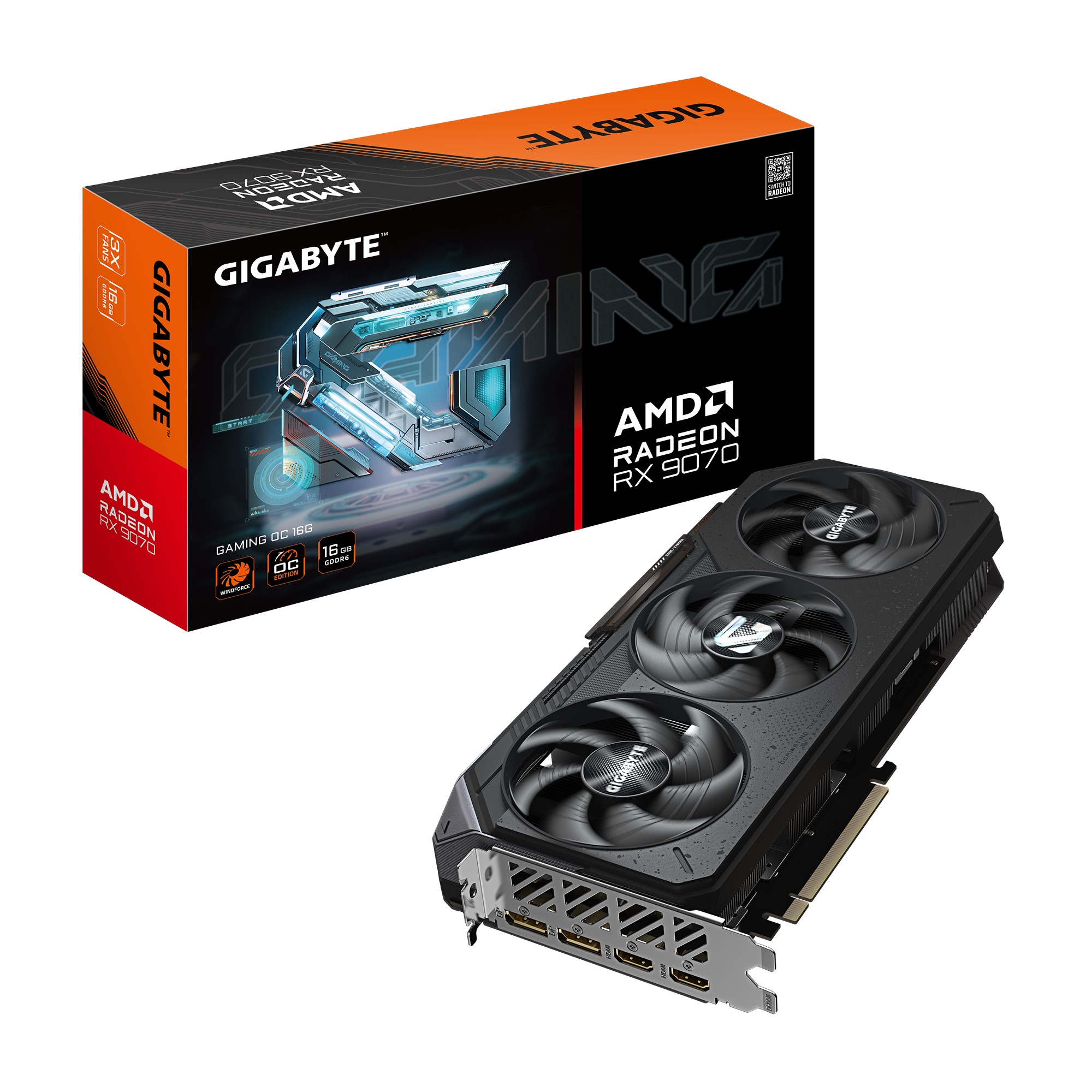

Gigabyte Radeon™ RX 9070 GAMING OC 16G, 20 Gbps, GDDR6, PCI-E 5.0, PSU 750W, 8 pin*2, DisplayPort 2.1a x2 HDMI 2.1b x2

Description

Gigabyte Radeon™ RX 9070 GAMING OC 16G, 20 Gbps, GDDR6, PCI-E 5.0, PSU 750W, 8 pin*2, DisplayPort 2.1a x2 HDMI 2.1b x2

SPECIFICATION

Graphics Processing
Radeon RX 9070

Core Clock
Boost Clock* : up to 2700 MHz (Reference card: 2520 MHz)
Game Clock* : up to 2210 MHz (Reference card: 2070 MHz)

Stream Processors
3584 ( 56CU)

Memory Clock
20 Gbps

Memory Size
16GB

Memory Type
GDDR6

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680 x 4320

Multi-view
4

Card size
L=288 W=132 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
8 pin*2

Output
DisplayPort 2.1a x2
HDMI 2.1b x2

Accessories
VGA manual

FEATURES
Powered by Radeon™ RX 9070
Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
