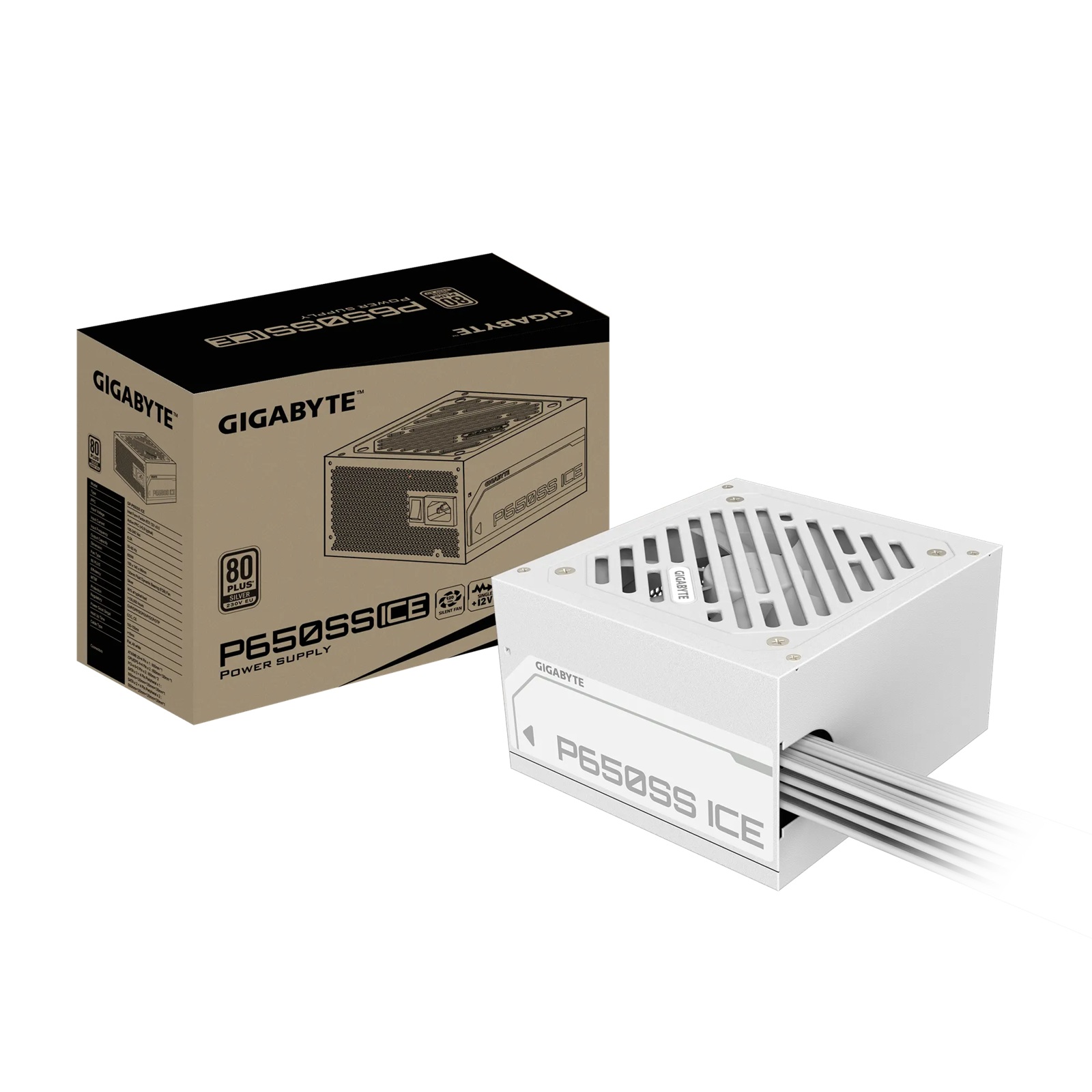

Gigabyte GP-P650SS ICE 650W ATX PSU Power Supply 80+ Silver 120mm 12V >100K Hrs 50-60 Hz 120mm Fan

Description

Gigabyte GP-P650SS ICE 650W ATX PSU Power Supply 80+ Silver 120mm 12V >100K Hrs 50-60 Hz 120mm Fan

Model
GP-P650SS

Type
Intel Form Factor ATX 12V v3.0

PFC
Active PFC(>0.9 typical)

Input Voltage
155-240 Vac

Input Current
6.3A

Input Frequency
50-60 Hz

Output Capacity
650W

Dimension
150 x 140 x 86 mm

Fan Type
120mm Fluid Dynamic Bearing (FDB) fan

80 PLUS
Silver

Efficiency
90% at typical load (230V EU)

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-500ms

Hold Up Time
>16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
PCI-e 6+2 Pin x 2 : 600mm*2
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
